Top 5 Concrete Barriers That Deliver Maximum Safety

Concrete barriers play an important role in keeping roads, work zones, and public spaces safe. They help control traffic, prevent dangerous crossovers, and protect both drivers and pedestrians from serious harm. Knowing which types of barriers offer the highest level of safety makes it easier to choose the right solution for any location.

This article looks at five barrier designs that stand out for their proven safety performance in different situations. From models built to absorb heavy impacts to options suited for temporary use, each type serves a specific purpose in reducing accidents and protecting people.

1.48 Barriers for traffic separation and impact absorption

Safety concrete barriers help control vehicle movement and reduce the force of collisions. They separate traffic lanes, protect work zones, and guide drivers through construction areas. Their solid weight and shape allow them to resist strong impacts.

48-inch barriers often serve in high-traffic areas where space is limited but protection is needed. Their height provides a clear visual boundary for drivers while still allowing some visibility across lanes. Many designs use reinforced concrete to withstand repeated impacts without major damage. This makes them suitable for long-term use in both permanent and temporary setups.

In addition to highways, these barriers work well for crowd control, event security, and blocked access points. Some safety concrete barriers are also designed for quick transport and placement, which helps crews adapt to changing site needs.

Proper placement and anchoring improve effectiveness by keeping barriers in position during a crash. This stability helps absorb impact energy and reduces the chance of secondary accidents.

2.F-Shape Barriers designed to reduce vehicle rollover

The F-Shape barrier uses a lower sloped face to guide vehicles back toward their lane during low-speed impacts. This design helps maintain the vehicle’s direction and reduces the chance of it leaving the roadway. Engineers created it as a safer variation of the older Jersey barrier profile.

Its geometry limits how much a vehicle lifts off the ground during a collision. Less lift means a lower risk of rollover, especially for smaller cars. This feature makes it well-suited for areas with high traffic volumes and mixed vehicle types.

In higher-speed crashes, the barrier still redirects vehicles while absorbing some impact energy through controlled lift. As a result, it balances stability with impact performance. Tests have shown that it performs well in preventing severe rollovers compared to some older designs.

Permanent installations often use F-Shape barriers along highways, bridges, and work zones. Their concrete construction provides long-term separation between traffic lanes while requiring minimal upkeep over time.

3.Water-Filled Barriers for Temporary and Flexible Safety

Water-filled barriers offer a practical option for short-term safety needs. They use hollow plastic shells that crews fill with water on-site, which makes them lighter to transport before setup. This feature reduces the effort and equipment needed for delivery.

These barriers work well in areas that require quick installation and removal. Road projects, public events, and temporary detours often use them because teams can move and adjust them with minimal disruption.

Their bright colors and reflective panels improve visibility for drivers and pedestrians. This added visibility can help reduce accidents in busy or low-light areas.

However, water-filled barriers provide less impact resistance than concrete. They suit low to moderate speed zones rather than high-speed highways. For higher risk areas, they may need to be combined with other safety measures.

The modular design allows crews to connect multiple units in different shapes or lengths. This flexibility helps fit them into a wide range of layouts and site conditions.

4.Tangent Barriers Offering Continuous Protection in Highways

Tangent barriers provide a solid, uninterrupted line of defense along roadways. They guide vehicles back into their lanes after minor impacts and reduce the chance of cross-lane collisions. Their straight design makes them suitable for long stretches of highway.

These barriers often use precast concrete segments locked together for stability. This design allows them to handle repeated contact without significant movement. As a result, they help maintain traffic flow even in busy areas.

Highway engineers place tangent barriers in locations with steady traffic and limited curves. The continuous surface prevents vehicles from passing through gaps, which improves safety for drivers and roadside workers.

In addition, tangent barriers require minimal maintenance once installed. Their durability and simple structure make them a practical choice for long-term highway projects. They also work well with other safety features, such as crash cushions, to further reduce accident severity.

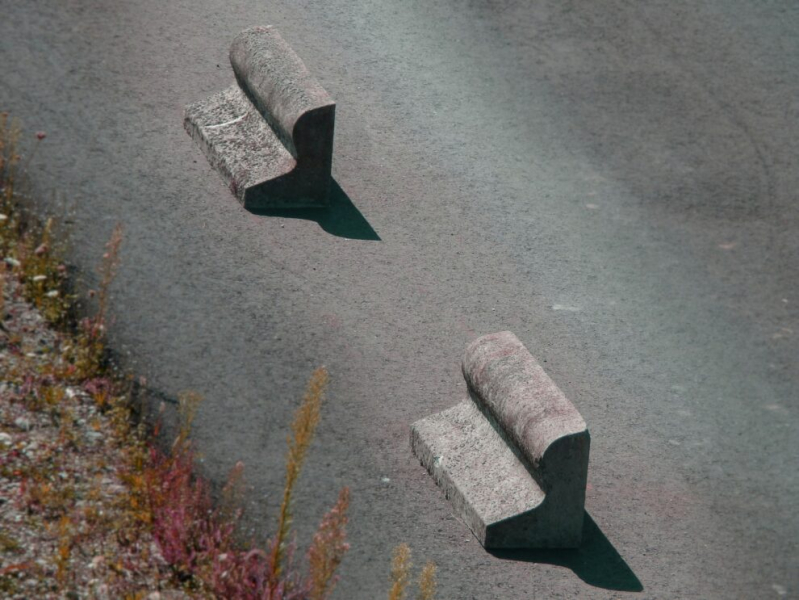

5.Concrete Step Barriers providing pedestrian safety

Concrete step barriers help protect pedestrians in areas with vehicle traffic. Their stepped profile can slow or stop a vehicle before it reaches a walkway. This design also reduces the chance of a vehicle crossing into pedestrian zones after a collision.

These barriers often appear along busy roads, near construction sites, or in urban areas with heavy foot traffic. They create a clear separation between vehicles and people, which improves safety in high-risk locations.

Engineers design step barriers to absorb and redirect impact forces. As a result, they help lower the severity of accidents involving vehicles that leave the roadway.

In addition to safety benefits, step barriers can work with attachments that deter unsafe pedestrian crossings. For example, fencing or railings may be added to guide people toward safer crossing points.

Their solid concrete structure also withstands weather and wear for many years, making them a practical choice for long-term pedestrian protection.

Conclusion

Concrete barriers play an important role in separating traffic, protecting work zones, and reducing the chance of severe accidents. Each type serves a specific purpose, from redirecting vehicles to shielding pedestrians in busy areas.

The right choice depends on factors such as location, expected impact force, and whether the barrier will be temporary or permanent. These considerations help match the barrier design to the safety needs of the site.

By understanding the strengths of different barrier types, planners and engineers can create safer roads and work environments. This approach supports both public safety and efficient traffic management.
